atBOS Devices

atBOS devices provide data and information to control buildings

Overview

Atamate Devices are the hardware devices that make up the atBOS system. They are installed to monitor spaces, record energy consumption, and control components.


They require only a 230V power supply and communicate via wireless mesh technology, which allows communication between modules without the need for complex wiring.

Why choose atBOS?

Optimise the route to Net Zero

Atamate provides a comprehensive ecosystem for building management and control - atBOS - combining our software and applications into one streamlined and cost-effective package.

There are many advantages to using atBOS, such as our occupancy-based heating system, which has proven to reduce energy consumption by 25-30%.

Sensor Unit

sensor unit 01

The highly innovative Atamate Surface Mount Ceiling Sensor Unit (SU) enables the local collection, processing and control of building services in a typical room. Data is transmitted to the Hub computer for further analysis and processing.

Occupancy-based heating control can lead to savings upwards of 30%.

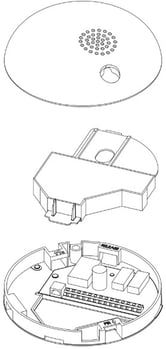

SU_parts

Included in the Sensor Unit:

  • Occupancy (PIR)
  • Temperature sensor
  • Carbon Dioxide Concentration
  • Relative Humidity
  • Volatile Organic Compounds (VOC)
  • Noise Sensor
  • Ambient Light Level

Why choose atBOS?

Optimise the route to Net Zero

Atamate provides a comprehensive ecosystem for building management and control - atBOS - combining our software and applications into one streamlined and cost-effective package.

There are many advantages to using atBOS, such as our occupancy-based heating system, which has proven to reduce energy consumption by 25-30%.

Meter Unit

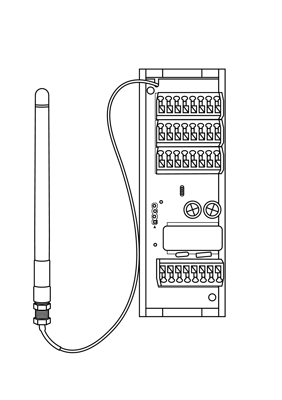

The Atamate Meter Unit provides a granular breakdown of electrical consumption by monitoring up to 8 circuits in a consumer unit.

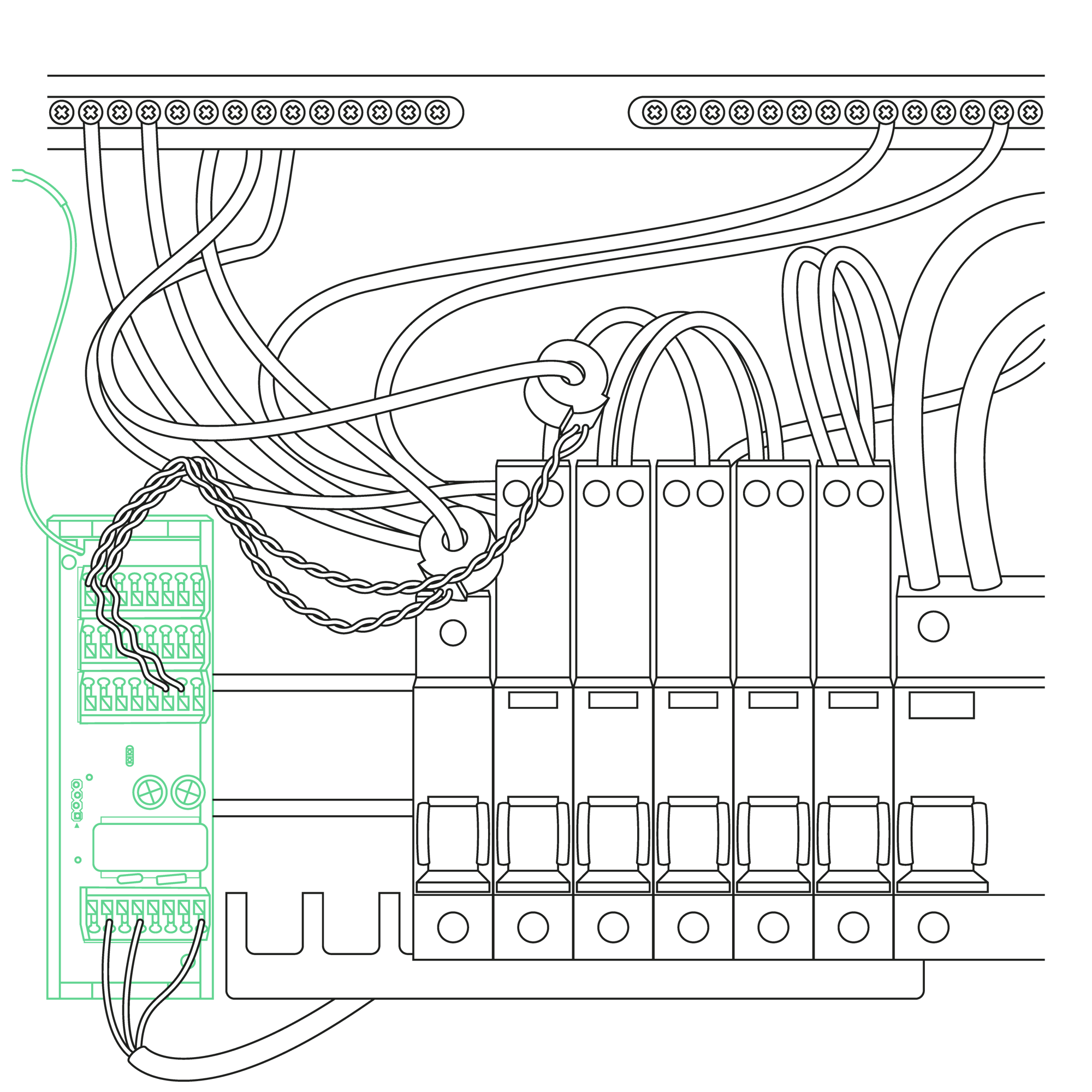

It is installed within a consumer unit, and can be fitted internally or externally to the CU.

AS000183 simple (1)
MUinSitu_v1

Why choose atBOS?

Optimise the route to Net Zero

Atamate provides a comprehensive ecosystem for building management and control - atBOS - combining our software and applications into one streamlined and cost-effective package.

There are many advantages to using atBOS, such as our occupancy-based heating system, which has proven to reduce energy consumption by 25-30%.

Relay Unit

The Atamate Relay Unit is used to control electric heaters and lighting circuits. It is installed in a concealed back box adjacent to devices.

AS000153 simple (4)

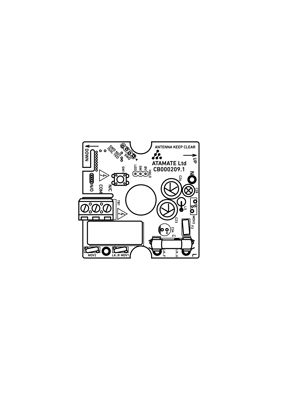

AS000210 (2)

The Relay Unit includes:

There are several options of RU, which include:

  • 2 x 16A relays
  • 2 x 2A relays
  • AUX port - allows for wired extension of the atBOS system, used to incorporate serial protocols such as Modbus or DMX, or are used to connect wired sensors into the system.
  • They can be fitted into any standard sized back box and can be installed with a blank face plate of with halo switches the can control devices by a user locally.

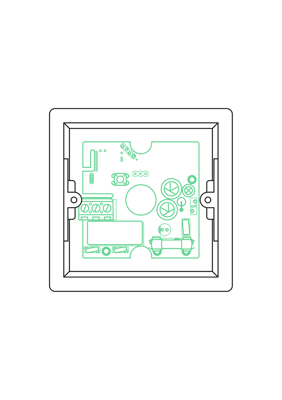

RUinBackbox_v1

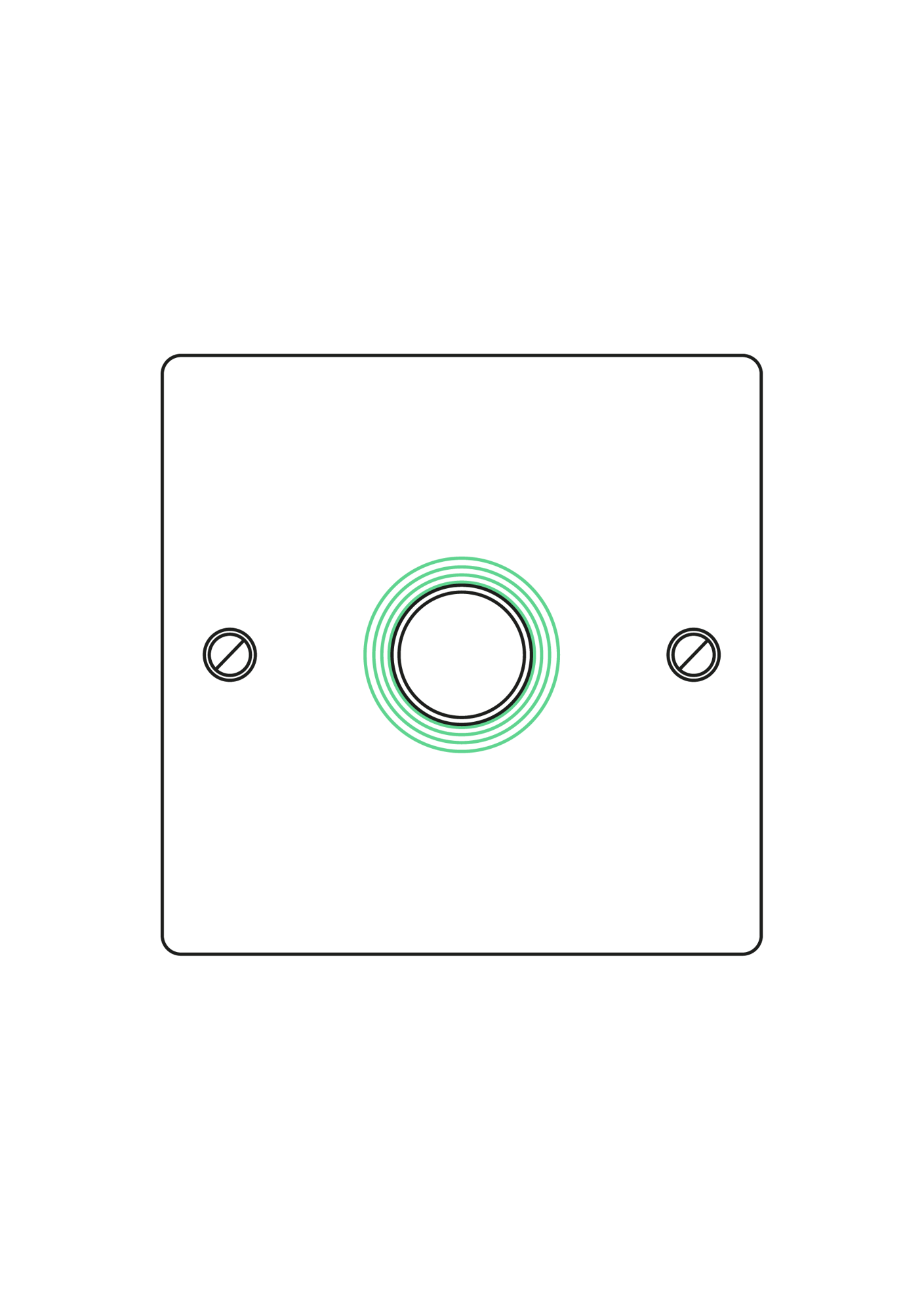

Pushbutton

Warranty Information

Atamate devices are all shipped with a 2 year limited standard warranty. If the device is damaged or defective within this period, Atamate will repair or replace it.

All non-Atamate products or non-Atamate branded peripherals external to the Atamate devices are provided “AS IS” without the Atamate warranty. However, non-Atamate manufacturers and suppliers, may provide their own warranties directly.
